Graph

A graph is a structure used to represent entities(nodes or vertices) and their relations(edges). The real-world graphs are usually associated with node features or edge features. GLT stores the topology data and feature data of a graph separately, and the node/edge ids are represented by consecutive integers starting from 0. The topology data of graph is represented by an instance of graphlearn_torch.data.graph.Graph and the feature data is described by an instance of graphlearn_torch.data.feature.Feature.

1. Graph

A graph can be described by a 2D edge_index Tensor, a CSR matrix, or a CSC matrix. GLT implements the class graphlearn_torch.data.graph.Topology to represent the input data of a graph, which supports edge_index tensor, CSR martix and CSC matrix format. Then the graph object is described by an instance of graphlearn_torch.data.graph.Graph, which takes Topology as input and stores the graph data in CPU memory, pinned memory or GPU memory according to corresponding mode. Based on Graph, GLT provides graph operations(both cpu and cuda versions are available) like neighbor sampling, negative sampling and subgraph sampling.

1.1 Topology

The graph topology data is formed into graphlearn_torch.data.graph.Topology object from edge index (with the format of ‘COO’, ‘CSC’ or ‘CSR’ derectly), which will be used to build Graph. Topology also supports the input edge_ids to represent edge ids and will assign ordinal indices to edges by input order by default. Topology uses input_layout to represent the input edge index format and layout to represent the target edge index format. input_layout supports ‘COO’, ‘CSC’ and ‘CSR’ as input, and layout can select ‘CSC’ or ‘CSR’ format, which depends on whether the sampling method is in-bound or out-bound.

class Topology(object):
  r""" Graph topology with support for CSC and CSR formats.

  Args:
    edge_index (a 2D torch.Tensor or numpy.ndarray, or a tuple): The edge
      index for graph topology, in the order of first row and then column.
    edge_ids (torch.Tensor or numpy.ndarray, optional): The edge ids for
      graph edges. If set to ``None``, it will be aranged by the edge size.
      (default: ``None``)
    input_layout (str): The edge layout representation for the input edge index,
      should be 'COO' (rows and cols uncompressed), 'CSR' (rows compressed)
      or 'CSC' (columns compressed). (default: 'COO')
    layout ('CSR' or 'CSC'): The target edge layout representation for
      the output. (default: 'CSR')
  """
  def __init__(self, edge_index, edge_ids, input_layout = 'COO',
               layout: Literal['CSR', 'CSC'] = 'CSR')

1.2 Graph

The graphlearn_torch.data.graph.Graph takes Topology as input and supports three storage modes:

CPU: graph data are stored in the CPU memory and graph operations are also executed on CPU.
ZERO_COPY: graph data are stored in the pinned CPU memory and graph operations are executed on GPU.
CUDA: graph data are stored in the GPU memory and graph operations are executed on GPU.

class Graph(object):
  r""" A graph object used for graph operations such as sampling.

  Args:
    csr_topo (Topology): An instance of ``Topology`` with graph topology data.
    mode (str): The graph operation mode, must be 'CPU', 'ZERO_COPY' or 'CUDA'.
      (Default: 'ZERO_COPY').
    device (int, optional): The target cuda device rank to perform graph
      operations.
  """
  def __init__(self, csr_topo: Topology, mode = 'ZERO_COPY',
               device: Optional[int] = None):

2. Feature

Feature data of large scale graphs often exceeds the limit of GPU memory, so we cannot simply use CUDA Tensor to store feature data. If the feature data is stored in CPU memory, Large number of data copy operations between host(CPU) and device(GPU) will be the bottleneck in the whole process of GPU training.

GLT implements the graphlearn_torch.data.feature.Feature to manage storage of nodes feature and edges feature(not supported yet) and handle the feature loookup. When using GPU training, the feature data will be split into two parts according to different ratios, which will be stored on GPU (e.g., feature data that are frequently accessed) and pinned memory respectively. Then a CUDA kernel function is used to perform feature lookup, reducing the time of data copy and increasing the overall throughput.

2.1 UnifiedTensor

Feature consists of a CPU-GPU unified memory instance called graphlearn_torch.data.unified_tensor.UnifiedTensor. UnifiedTensor unifies the management of CUDA Tensor and CPU Tensor to provide efficient data access. As shown in the figure below, if GPUs have direct peer2peer access (with NVLink), the memory of these GPUs can also be unified and managed by UnifiedTensor.

unified_tensor

Therefore, UnifiedTensor can access CUDA Tensor directly, CUDA Tensor on other GPUs via NVLink, and CPU Tensor by ZERO-COPY via UVA.

One way to create a UnifiedTensor is to use the init_from method, which takes a list of CPU Tensors as input and will store each CPU Tensor to their corresponding device according to tensor_devices.

class UnifiedTensor(object):
  r"""

  Args:
    current_device (int): An integer to represent the GPU device where the
      underlying cuda operation kernel is launched.
    dtype (torch.dtype): The data type of the tensor elements.
  """
  def __init__(self, current_device: int, dtype: torch.dtype = torch.float32):
    self.current_device = current_device
    self.dtype = dtype
    self.unified_tensor = pywrap.UnifiedTensor(current_device, dtype)
    self.cpu_part = None # tensor stored in CPU memory.

  def init_from(self, tensors, tensor_devices):
    r""" Initialize from CPU torch.Tensors.

    Args:
      tensors: CPU torch.Tensors indicating the tensors that need to be stored
        on different GPUs and CPU.
      tensor_devices: The indices of devices indicating the location of the
        tensor storage, -1 means on CPU and other > 0 value means on GPUs.
      Note that tensors and tensor_devices must correspond to each other.
    """
    self.unified_tensor.init_from(tensors, tensor_devices)

2.2 DeviceGroup

GLT uses an instance of graphlearn_torch.data.feature.DeviceGroup to represent a group of GPUs that have p2p access to each other. For example, suppose there are 8 GPUs, if there is no NVLink between each other, then there will be 8 DeviceGroups, each of which has one GPU. And if GPU #[0,1,2,3] have NVLink connections between each other, and GPU #[4,5,6,7] have NVLink connections, then GPU #[0,1,2,3] compose a DeviceGroup, GPU #[4,5,6,7] compose a DeviceGroup.

2.3 Feature

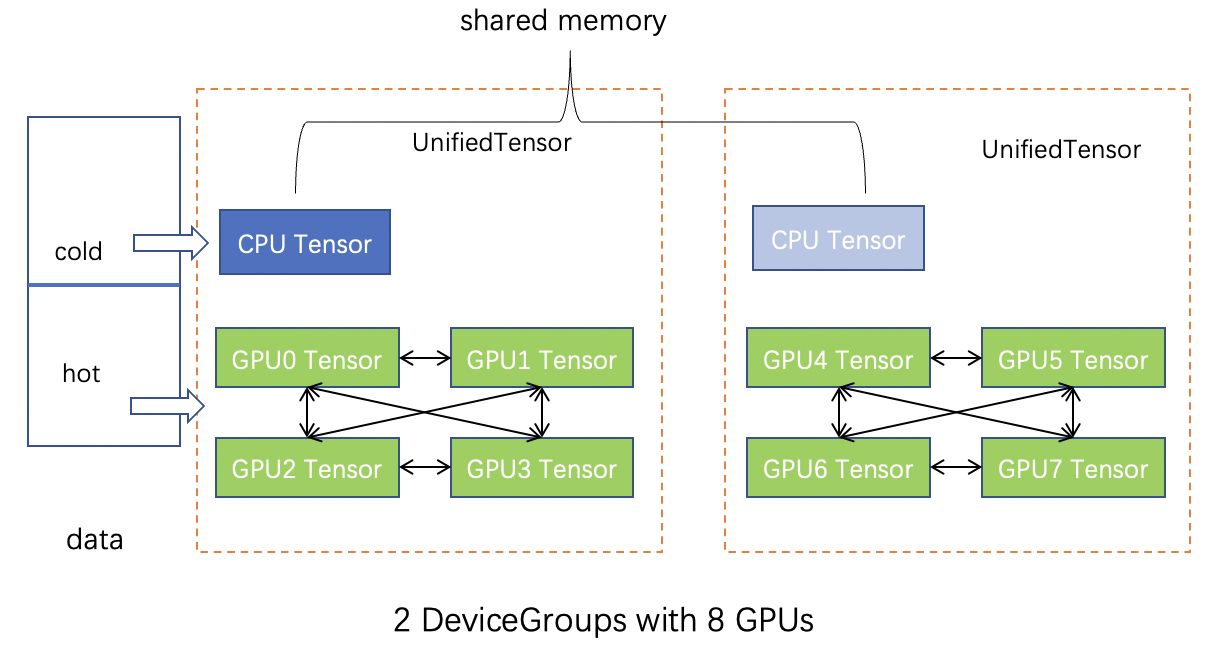

Feature splits the input CPU tensor into GPU(hot) part and CPU(cold) part according to split_ratio in the input order(assuming it has been reordered). The CPU part will be put into shared memory and pinned, so that different GPU can share and access it through UVA. For the GPU part, each DeviceGroup in the device_group_list stores a replica, and then the data within the DeviceGroup is equally divided into each deivce(GPU) for storage. It is well known that the bandwidth of NVLink is much higher than that of PCIe. Therefore, compared to the solution that each GPU holds a replica of the feature cache, introducing DeviceGroup in GLT allows us to significantly expand the cache capacity of feature data in GPU and make full utilization of the NVLink bandwidth.

replica_per_gpu replica_per_dg

Feature uses UnifiedTensors to manage the data by default, and also provides a wrapper of CPU tensor when there is no gpu is available(set with_gpu to False for this case).

class Feature(object):
  r""" A class for feature storage and lookup with hardware topology awareness
  and high performance.

  Args:
    feature_tensor (torch.Tensor or numpy.ndarray): A CPU tensor of the raw
      feature data.
    id2index (torch.Tensor, optional):: A tensor mapping the node id to the
      index in the raw CPU feature tensor.
    split_ratio (float): The proportion of feature data allocated to the GPU,
      between 0 and 1.  (Default: ``0.0``).
    device_group_list (List[DeviceGroup], optional): A list of device groups.
    device (int, optional): The target cuda device rank to perform feature
      lookups with the GPU part.
    with_gpu: A Boolean value indicating whether the ``Feature`` uses
      ``UnifiedTensor``.
  """
  def __init__(self,
               feature_tensor: Union[torch.Tensor, numpy.ndarray],
               id2index: Optional[torch.Tensor] = None,
               split_ratio: float = 0.0,
               device_group_list: Optional[List[DeviceGroup]] = None,
               device: Optional[int] = None,
               with_gpu: Optional[bool] = True):

You can create a graphlearn_torch.data.feature.Feature instance by a input CPU Tensor feature_tensor. Here is a simple example:

import torch
import graphlearn_torch as glt

feat_tensor = torch.ones(512, 128)
# suppose you have 8 GPUs.
# if there is no NVLink.
# device_groups = [glt.data.DeviceGroup(i, [i]) for i in range(8)]
# if there are NVLinks between GPU0-3 and GPU4-7.
device_groups = [glt.data.DeviceGroup(0, [0,1,2,3]),
                 glt.data.DeviceGroup(1, [4,5,6,7])]
# Split the CPU feature tensor, of which the GPU part accounts for 60%.
# Launch the GPU kernel on device 0 for this ``Feature`` instance.
feature = glt.data.Feature(feat_tensor,
                           split_ratio=0.6,
                           device_group_list=device_groups,
                           device=0,
                           dtype=torch.float32)
input = torch.tensor([1,2,5,8], device='cuda:0')
print(feature[input])

2.4 Feature Reordering

graphlearn_torch.data.reorder.sort_by_in_degree

The Feature is sliced in the input order, so it will have better performance if the hot data is placed in front of input data. Therefore, before feature splitting, we need to reorder the input feature according to different strategies, e.g., according to the in-degrees of vertices or the pre-sampled hotness distribution of vertices. The following feature reordering methods are currently supported:

graphlearn_torch.data.reorder.sort_by_in_degree : Reorder the features according to the in-degree of the nodes in the graph.
